Modified sine wave inverter, 24V, 2.4KVA Capacity UPS, AVR (Stabilizer) and charger function 90v to 280v Input Charge Current 10/20A uses minimum 2 batteries (24v) Read more
PLEASE NOTE: THIS INVERTER IS A 24V INVERTER SYSTEM, IT REQUIRES MINIMUM OF 2 UNITS OF 12V BATTERY TO POWER THE INVERTER. PROPER INSTALLATION MUST BE CARRIED OUT BY A CERTIFIED ENGINEER.

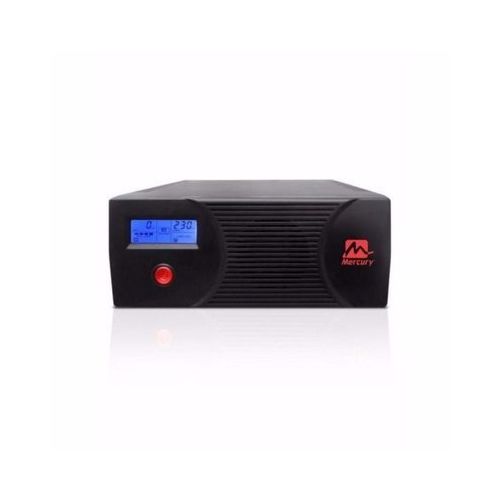

Mercury modify sinewave Inverter With Digital Display 2.4KVA 24V with typical wave, battery voltage 24VDC floating charge.
The Mercury 2400 inverter (with in-built Charger and UPS) converts DC power to AC power with amazing transfer efficiency. With a 1440-watt continuous output and compact design, the unit is ideal for running TVs, stereos, desktop or laptop computers and other home appliances
Technical Specification | |
Model | 2.4kva |
Voltage | 230VAC |
Capacity | 2400VA/1440W |
Voltage Range | 170-280VAC (UPS Mode) |
Voltage Regulation(Battery Mode) | 230VAC +/-10% |
Transfer Time | 20 ms Typical |
Waveform | Modified Sine Wave |
Battery Voltage | 24VDC |
Floating Charge Voltage | 27.00VDC +-0.5 |
Charge Current | 10/20A |
Dimention | 330 x 227.8 x 92.5 |
Net Weight (Kgs) | 2.8 |
Gross Weight (Kgs) | 3.3 |
